http.h File Reference

PDepp's http level module. More...

#include "common.h"
#include <time.h>
#include "buffer.h"
#include "conn_handler.h"

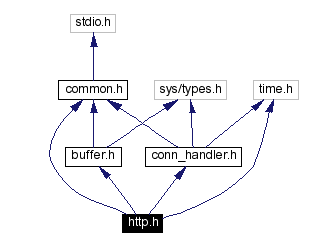

Include dependency graph for http.h:

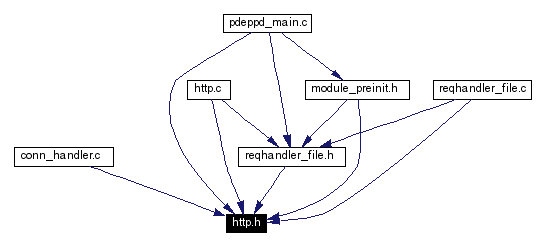

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef HttpProtHandler *	HttpProtHandler
	the struct containing all necessary information (on http-level) for a connection.
Functions
int	htModulePreInit ()
	pre-initialise module.
int	htModuleTerminate ()
	clean up rssources allocated by module.
HttpProtHandler	htInit (ConnHandler parent)
	creates, initializes and returns a Http Protokoll Handler. More...
int	htReceive (HttpProtHandler this, struct Buffer buf)
	orders a ProtHandler to Recieve data. More...
int	htSend (HttpProtHandler this, struct Buffer **buf)
	orders a ProtHandler to send buffered data. More...
int	htProcess (HttpProtHandler this)
	gives the chance to do some internal job. More...
int	htIsDataPending (HttpProtHandler this)
	checks if data is pending. More...
int	htTerminate (HttpProtHandler this)
	terminates this. More...
int	htGetError (HttpProtHandler this)
	returns the error of this. More...

---

Detailed Description

PDepp's http level module.

This Module contains necessary operations for internal data exchange on http-level.

Definition in file http.h.

---

Function Documentation

int htGetError (  HttpProtHandler    this )

returns the error of this. Parameters: this  the struct to be manipulated Returns: error of this

HttpProtHandler htInit (  ConnHandler    parent )

creates, initializes and returns a Http Protokoll Handler. Parameters: parent  Parent ie. caller htInit just initialises some std. values and resets data Returns: an initialized HttpProtHandler Referenced by chInit().

int htIsDataPending (  HttpProtHandler    this )

checks if data is pending. Parameters: this  the struct containing data information Returns: true if data pending, else false Referenced by forwardSendToProtHandler().

int htProcess (  HttpProtHandler    this )

gives the chance to do some internal job. Parameters: this  the struct containing data information gives this the chance to do some internal work. NOTHING IMPLEMENTED NOW Returns: 0 on success, -1 on error (error of this is set to apropriate error) Referenced by chProcess().

int htReceive (  HttpProtHandler    this, struct Buffer    buf )

orders a ProtHandler to Recieve data. Parameters: this  the struct to be manipulated str  the string containing the data to be recieved htRecieve has to be understood as htRecieve!, because it is a call to do so. The data to be recieved is a buffer, which will be processed and validated. Returns: 0 on success, -1 if any error occured (error of this is set to concrete error) Referenced by chReceive().

int htSend (  HttpProtHandler    this, struct Buffer **    buf )

orders a ProtHandler to send buffered data. Parameters: this  the struct containing data information buf  the buffer (pnter), in which the data will be stored htSend has to be understood as htSend!, because it is a call to do so. If data is waiting, it will be stored in buf, else (*buf)->data is set to NULL. Returns: 0 on success, -1 on error (error of this is set to concrete error) Referenced by forwardSendToProtHandler().

int htTerminate (  HttpProtHandler    this )

terminates this. Parameters: this  the struct to be terminated terminates this and frees all allocated memory used by this. Also calls underlying terminate functions Returns: 0 on success, -1 on error (error of this is set to apropriate error) Referenced by chTerminate().

---
