conn_handler.h File Reference

connection handler object (represents a connection to a user agent). More...

#include "common.h"
#include <sys/types.h>
#include <time.h>

Include dependency graph for conn_handler.h:

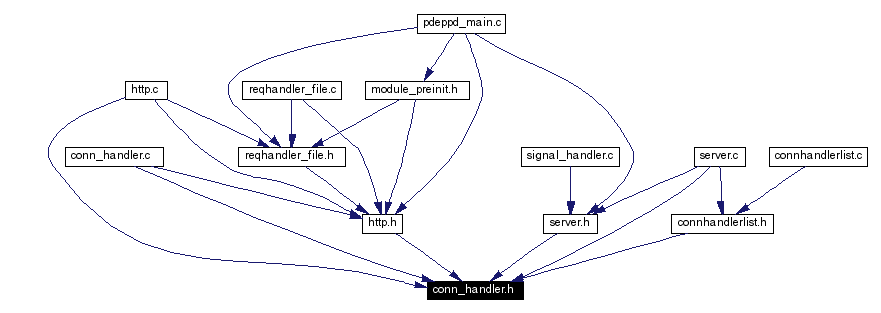

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef ConnHandler *	ConnHandler
	define a convenience name for the ConnHandler object.
Functions
int	chModulePreInit ()
	initialise module (calculate constant values and allocate common buffers). More...
int	chModuleTerminate ()
	free all ressources allocated by the module. More...
ConnHandler	chInit (int server_socket)
	creates and returns a new CHData connection handler object. More...
int	chGetSocket (const ConnHandler this)
	returns a file descriptor to the connection handler's communication socket. More...
time_t	chGetStamp (const ConnHandler this)
	get a ConnectionHandler's transmit timestamp. More...
time_t	chgetStamp (const ConnHandler this)
	returns the time where the last block if data was exchanged. More...
int	chReceive (ConnHandler this)
	handles a request pending at the connection handlers socket. More...
int	chIsDataPending (const ConnHandler this)
	returns true if there is pending data. More...
int	chSend (ConnHandler this)
	send some of the data currently in queue. More...
int	chProcess (ConnHandler this)
	do additional data processing. More...
int	chGetError (const ConnHandler this)
	return the connection handler's current error status. More...
int	chTerminate (ConnHandler this)
	terminate the connection handler. More...

---

Detailed Description

connection handler object (represents a connection to a user agent).

Definition in file conn_handler.h.

---

Function Documentation

int chGetError (  const ConnHandler    this )

return the connection handler's current error status. Parameters: this  connection handler Returns: 0 if no error occured, an errno error code else Referenced by svMain().

int chGetSocket (  const ConnHandler    this )

returns a file descriptor to the connection handler's communication socket. Parameters: the  connection handler whose socket is to be returned Returns: file descriptor of the connection handler's comm. socket Referenced by svCloseConnection(), and svMain().

time_t chGetStamp (  const ConnHandler    this )

get a ConnectionHandler's transmit timestamp. returns the time the ConnectionHandler ch made its last transmission from or to the remote end Parameters: the  connection handler Returns: the time the last transmission from or to the remote end was made Referenced by svMain().

ConnHandler chInit (  int    server_socket )

creates and returns a new CHData connection handler object. Parameters: server_socket  a server socket with a pending connection request chInit creates and initializes a CHData connection handler object. If a connection can be established a CHData object representing the connection is returned. Returns: pointer to a CHData object on success, NULL on failure Referenced by svMain().

int chIsDataPending (  const ConnHandler    this )

returns true if there is pending data. Parameters: this  connection handler /retval true there is data currently waiting to be send /retval false send queue is idle Referenced by forwardSendToProtHandler(), and svMain().

int chModulePreInit (    )

initialise module (calculate constant values and allocate common buffers). Returns: 0 on success and -1 on failure

int chModuleTerminate (    )

free all ressources allocated by the module. Returns: 0 on success and -1 on failure

int chProcess (  ConnHandler    this )

do additional data processing. Parameters: this  connection handler Gives the thread of control to the connection handler this, allowing it to preprocess some data while it's socket is busy. In most cases it will just call a protocol handlers phProcess in turn to allow it to fill a second send buffer until the socket is idle again. Returns: don't know... Referenced by svMain().

int chReceive (  ConnHandler    this )

handles a request pending at the connection handlers socket. Parameters: this  connection handler with pending data chReceive reads all pending data from the connection handlers communication socket and takes appropriate actions. Returns: don't know... Referenced by svMain().

int chSend (  ConnHandler    this )

send some of the data currently in queue. Parameters: this  connection handler The connection handler this is requested to send some data. Returns: don't know... Referenced by svMain().

int chTerminate (  ConnHandler    this )

terminate the connection handler. Parameters: this  connection handler to be terminated Closes the connection, terminates all related objects and frees all buffers Returns: don't know... Referenced by svCloseConnection(), and svMain().

time_t chgetStamp (  const ConnHandler    this )

returns the time where the last block if data was exchanged. Parameters: a  connection handler Returns: a timestamp

---
